Product Description
- Large jobs for cutting block, brick or pavers.
- Capable of cutting 8″x8″x16″ block in one pass with 20″ blade.
- Blade sold separately.
- Available with a 14″ or 20″ blade guard.
- High Torque, Baldor continuous duty dual capacitor motors make efficient use of horsepower and reduce cutting time.
- New replaceable rails make alignment of the cart easier.
- Only two pivot points for reduced saw maintenance and longer diamond blade life.
- Cutting head pivot on bearings which are sealed and lubricated for life – no greasing required!
- Height can be controlled with a convenient crank control or foot pedal.
- The Sta-level blade guard keeps parallel to the cutting table for accurate cuts.

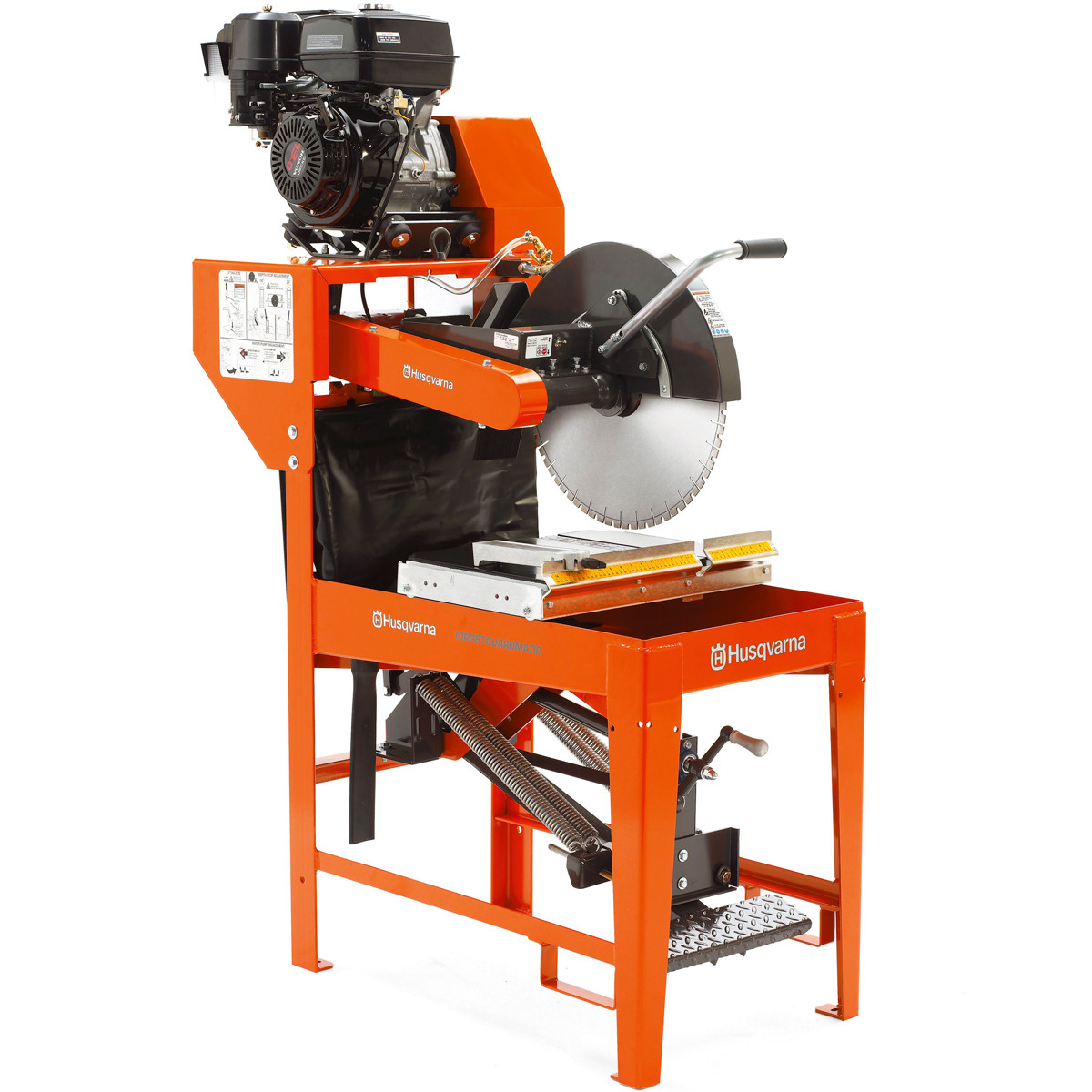

Husqvarna Portasaw MS510 Saw Specifications | ||
Blade Size | 14 in | 20 in |
Cutting Depth | 5 in | 8 in |
Arbor | 1 in | 1 in |
Dimensions (Electric) | 47-3/4″ x 22 x 57-1/2″ | 47-3/4″ x 22 x 57-1/2″ |
Husqvarna Portasaw MS510 Motor Specifications | ||||||
Motor Option | Baldor – 3 hp 2,200 W |
Baldor – 5 hp 3,700 W |
Baldor – 3 hp 2,200 W |
Baldor – 5 hp 3,700 W |
Baldor – 7.5 hp 5,600 W |
Baldor – 7.5 hp 5,600 W |
Blade Size | 14 inch | 14 inch | 20 inch | 20 inch | 20 inch | 20 inch |
Voltage | 208/230 V | 208/230 V | 208/230 V | 208/230 V | 230 V 3-phase |
460 V 3-phase |
Power Source | Electric | Electric | Electric | Electric | Electric | Electric |
Blade RPM | 3,090 | 3,090 | 2,317 | 2,317 | 2,317 | 2,317 |
Weight | 332 lbs. | 333 lbs. | 332 lbs. | 333 lbs. | 395 lbs. | 395 lbs. |
